Constructing Queens Quay

Quick Facts

Length of construction:

1.7 kilometres

Location:

Yo Yo Ma Lane to Bay St. plus southside enhancements from Bay St. to Jarvis St.

Hydro work:

There were 47 new or rebuilt chambers and 32 concrete-encased ducts

TTC work:

Track removals, slight realignment and reconstruction of tracks including half grand union and turning loop at Lower Spadina Ave.

Storm and sanitary:

New storm and sanitary infrastructure and watermain between HTO East and Bay St.

Trees:

Approximately 240 trees were planted.

Granite:

Approximately 2.5 million Canadian granite pavers were installed by hand.


Queens Quay has been rebuilt and revitalized both above and below ground.


Construction of Queens Quay - Toronto's waterfront boulevard - was completed and the street officially opened on June 19, 2015. After three years of construction, the transformation of Queens Quay completely rebuilt and revitalized Queens Quay both above and below ground.


The revitalization of Queens Quay was about much more than rebuilding the roadway. Waterfront Toronto led a coordinated construction effort that integrated improvements to the public realm with much needed infrastructure and utility upgrades. The goal was to avoid the need for construction in the near future by making these upgrades at the same time.


There were many changes in how the street (Bay St. to Yo Yo Ma Lane) operated during construction. Some of the work included:


  • One way traffic on either the north or south side of the roadway – alternating between where crews were working.
  • TTC was rerouted when the streetcar was out of service.
  • Temporary gangplanks for foot traffic while zones in front of stores were being rebuilt -- access to all storefronts was maintained.
  • Fences around construction areas were in place to maintain pedestrian and vehicular safety.
  • Construction noise as permitted by City bylaws.


Eastern Construction was the Construction Manager and was responsible for overseeing the project on behalf of Waterfront Toronto.


What We Built

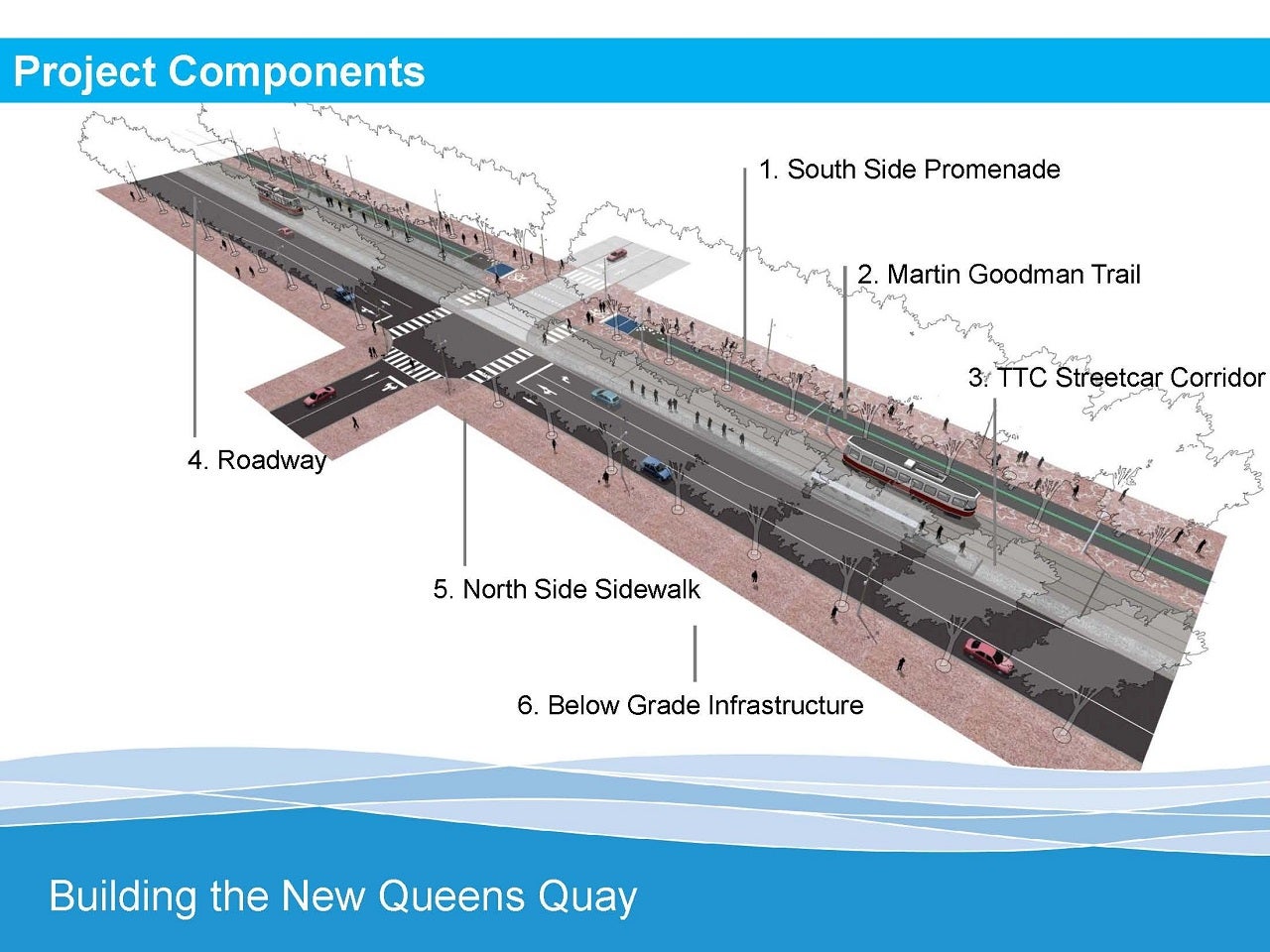

The new Queens Quay had six major components. See image below for how they come together to make a beautiful waterfront street.

diagram showing cross section of the six project components of building the new Queens Quay West as labelled - 1. South Side Promenade, 2. Martin Goodman Trail, 3. TTC Streetcar Corridor, 4. Roadway, 5. North Side Sidewalk.


Construction Liaison Committee

The Queens Quay Construction Liaison Committee provided a forum for residents, businesses and neighbourhood groups to discuss construction related issues.  The committee met on a monthly basis during construction.



Open for Business

Queens Quay was open for business during construction. All area businesses, waterfront festivals and events continued and Queens Quay remained open to transit, car and pedestrian traffic. Access was maintained to all businesses at all times.


Construction Notice

Throughout the construction of Queens Quay we issued a detailed  construction notice every week and special notices when required.
